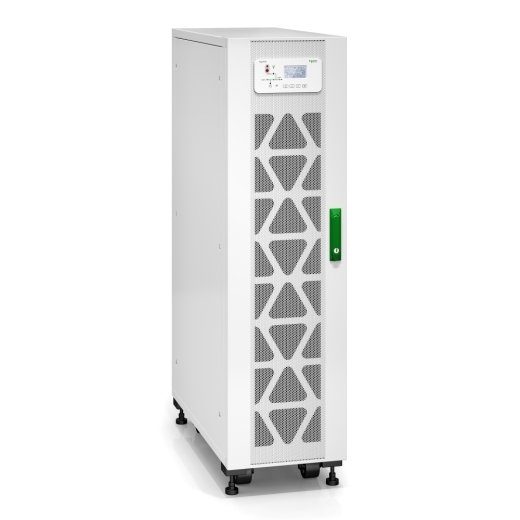

APC Easy UPS 3S 20kVA 400V 3:3 UPS, 3 internal 7Ah modular battery strings
$118,798.81
On backorder - Contact us for lead times
APC Easy UPS 3S 20kVA 400V 3:3 UPS, 3 internal 7Ah modular battery strings
Easy-to-install, easy-to-operate, easy-to-maintain, and easy-to-service 20 kVA, 400V 3-phase UPS With advanced product features, competitive specifications, and robust electrical design, the Easy UPS 3S UPS makes business continuity easy for small and medium data centers and electrical rooms Includes dust filter and conformance-coated boards for harsh environments, and 3 internal 7Ah modular battery strings.
Main Input Voltage 400 V 3 phases
Other Input Voltage 380 V, 415 V
Main Output Voltage 400 V 3 phases
Other Output Voltage 380 V, 415 V
Rated power in W 20 kW
Rated power in VA 20 kVA
Provided equipment- Dust filter, Installation guide
Range of product Easy UPS 3S
Maximum input current 37 A
Input harmonic distortion Less than 3 % for full load
Load power factor 0.9 leading to 0.9 lagging
Input Power Factor at Full Load 0.99
Input voltage limits 304...477 V
Network frequency 45...65 Hz
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0...3333 ft
Ambient air temperature for storage -15…40 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0.0000000000…15240.0000000000 m
Acoustic level 60 dBA
Heat dissipation 900 W
IP degree of protection IP20
Compatible Batteries- E3SBT4, E3SBTH4, E3SXR6
Compatible Cables- E3SOPT016
Compatible Interface connections- E3SOPT002, E3SOPT003
Compatible Spare parts- LV429390, E3SBT4, E3SOPT001, E3SOPT003
Compatible Options- E3SOPT007, E3SOPT008
