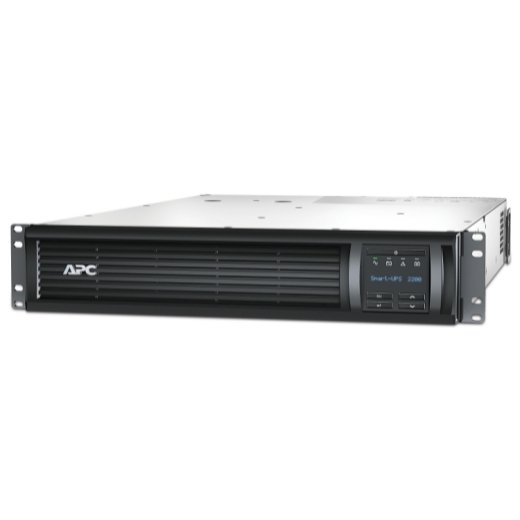

APC Smart-UPS 2200VA/1980W Line Interactive UPS, 2U RM, 230V/16A Input, 1x IEC C19 & 8x IEC C13 Outlets, Lead Acid Battery, SmartConnect Port & Slot
$3,740.00
Only 2 left in stock
Output
• Output power capacity: 1.98 KWatts / 2.2 kVA
• Max Configurable Power (Watts): 1.98 KWatts / 2.2 kVA
• Nominal Output Voltage: 230V
• Output Voltage Note: Configurable for 220: 230 or 240 nominal output voltage
• Output Frequency (sync to mains): 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
• Other Output Voltages: 220, 240
• Topology: Line Interactive
• Waveform type: Sine wave
• Output Connections:
◦ (8) IEC 320 C13 (Battery Backup)
◦ (1) IEC 320 C19 (Battery Backup)
• Transfer Time: 4ms typical: 8ms maximum
Input
• Nominal Input Voltage: 230V
• Input frequency: 50/60 Hz +/- 3 Hz (auto sensing)
• Input Connections: British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P
• Cord Length: 2 meters
• Input voltage range for main operations: 160 - 286 V
• Input voltage adjustable range for mains operation: 151 - 302 V
• Number of Power Cords: 1
• Other Input Voltages: 220, 240
Batteries & Runtime
• Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
• Typical recharge time: 3 hour(s)
• Replacement Battery: RBC43
• RBC Quantity: 1
• Battery Volt-Amp-Hour Capacity: 509
• Runtime: View Runtime Graph View Runtime Chart
• Efficiency: View Efficiency Graph
Communications & Management
• Interface Port(s): USB
• Control panel: Multi-function LCD status and control console
• Audible Alarm: Alarm when on battery: distinctive low battery alarm: configurable delays
• Available SmartSlot™ Interface Quantity: 1
Surge Protection and Filtering
• Surge energy rating: 375Joules
