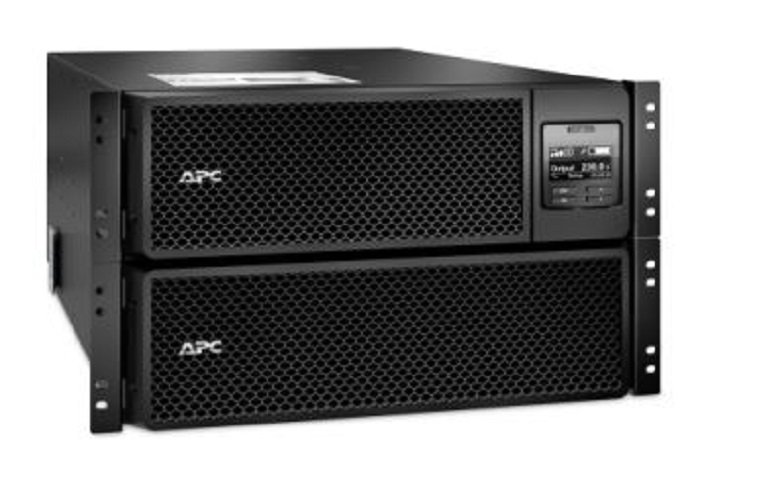

APC Smart-UPS On-Line, 8kVA/8kW, Rackmount 6U, 230V 3:1 and 1:1, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit
$13,200.00
On backorder - Contact us for lead times
APC Smart-UPS On-Line, 8kVA/8kW, Rackmount 6U, 230V 3:1 and 1:1, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit
This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection. This 8000VA/8000W On-line pure sine wave UPS provides scalable runtime while minimizing maintenance. It comes with hard wire 3-wire/5-wire input, 6x IEC 320 C13, 4x IEC 60320 C19 outlets, and 2x IEC jumper cables. Ideal for servers, voice/data networks, medical labs, and light industrial applications. It conforms to CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, and VDE. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Main Input Voltage 230 V, 400 V 3 phases
Other Input Voltage 220 V, 240 V, 380 V, 415 V
Main Output Voltage 230 V
Other Output Voltage 220 V, 240 V
Rated power in W 8000 W
Rated power in VA 8000 VA
Output connection type6 IEC 60320 C13, 3 IEC Jumpers, 4 IEC 60320 C19
Output connector type Hard wire 3-wire (H N + E) 1
Number of rack unit 6U
Provided equipment- CD with software, Documentation CD, Installation guide, Rack mounting hardware, Rack mounting brackets, Rack mounting support rails, Temperature probe, USB cable, Warranty card, Web/SNMP management card
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0...10000 ft
Ambient air temperature for storage -15…45 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0.00…15240.00 m
Acoustic level 55 dBA
Heat dissipation 1497 Btu/h
IP degree of protection IP20
Mounting mode- Rack mounted
Replacement Battery -APCRBC140
Compatible Batteries- SRT192RMBP2
Compatible wWireless Communication Adapter-AP9834
