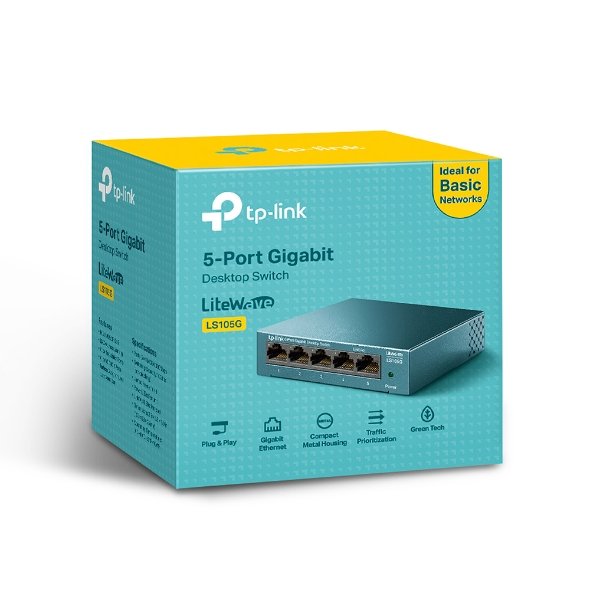

TP-Link LS105G 5-Port 10/100/1000Mbps Desktop Switch 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX (LS)
$39.00
Only 1 left in stock
• 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
• Green Ethernet technology saves power
• IEEE 802.3X flow control provides reliable data transfer
• Steel housing, desktop or wall-mounting design
• Support 802.1p/DSCP QoS function
• Plug and play, no configuration needed
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
Interface 5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 5VDC / 0.6A)
LED Indicator System Power
Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H ) 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
Max Power Consumption 2.776W (220V/50Hz)
Max Heat Dissipation 9.466 BTU/h
PERFORMANCE
Packet Forwarding Rate 7.4 Mpps
MAC Address Table 2K
Packet Buffer Memory 1 Mb
Jumbo Frame 16 KB
SOFTWARE FEATURES
Advanced Features Green Technology
802.3X Flow Control
802.1P/DSCP QoS
Transfer Method Store and Forward
OTHERS
Certification CE, FCC, RoHS
Package Contents 5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
